Basic Configuration
Main features:
*Two driven mode: electric and pneumatical
*Applicable to both adults and children
*TFT LCD display screen
*Multiple working mode and ventilation modes such as IPPV,A/C,SIMV,SPONT/CPAP,MAUN
*With alarming functions
*With built-in spare power source,when outside power source goes off,spare power source starts to work
Work condition:
Gas source:O2
Rated working pressure:280kpa~600kpa
Power source: Voltage ~100V~240V
Frequency:50/60HZ
Main parameters
Adjusting range of parameters:
Frequency :1 bpm ~ 100 bpm(
SIMV mode : 1 bpm ~ 20 bpm
Other modes: 4 bpm ~ 100 bpm
Tinsp (inspiratory time):0s ~ 6 s ( Except for SIMV mode,Respiratory ratio: 4:1 ~ 1:8 )
VT ( Tidal volume) range: 0 mL ~ 1500 mL
PEEP : 0 cmH2O ~ 20 cmH2O
CPAP : 0 cmH2O ~ 20 cmH2O
Adjusting range of O2 concentration : 45 % ~ 100 %
Holding time (Inhalation platform /TIP): 0 ~ 3 s( ≤ 50 % inspiratory time )
SIGH adjusting range: 1 /100 ~ 5/100
Suffocation ventilation : OFF , 5 s ~ 60 s
Pressure limit range :20cmH2O ~ 100 cmH2O
Ventilation volume under MAUA mode: >=25L/min
Max safety pressure <12.5Kpa
Monitoring parameters:
Frequency :0 /min ~ 100 /min
VT ( Tidal volume): 0 mL ~ 2 0 00 mL
MV( Tidal volume/min): 0 L/min ~ 99 L/min
Tube pressure: 0 cmH2O ~ 100 cmH2O
Concentration of inhaled oxygen: 15 % ~ 100 %

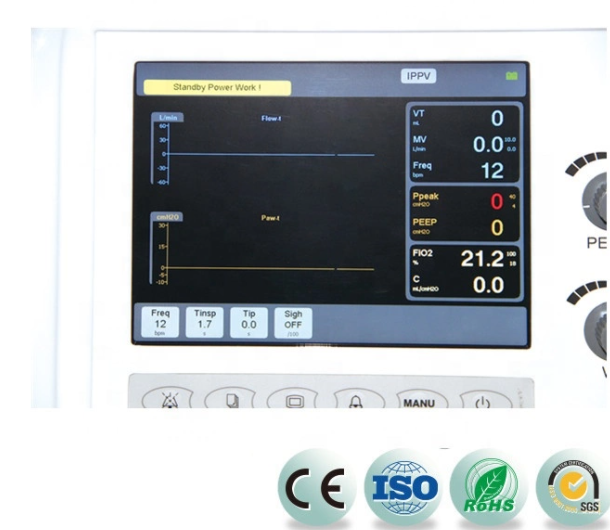

Graphical display
Tube pressure-time wave line
Air flow-time wave line
Alarming and protection function:
Alarm when AC power off
Alarm when spare power voltage getting low
Alarm when there’s tidal volume
Alarm when ventilation volume too high or too low
Alarm when tube pressure too high or too low
Pressure limits
Alarm when concentration of Oxygen too high or too low
Alarm when suffocation occurs
Pressure safety relief valve<125cmH2O
